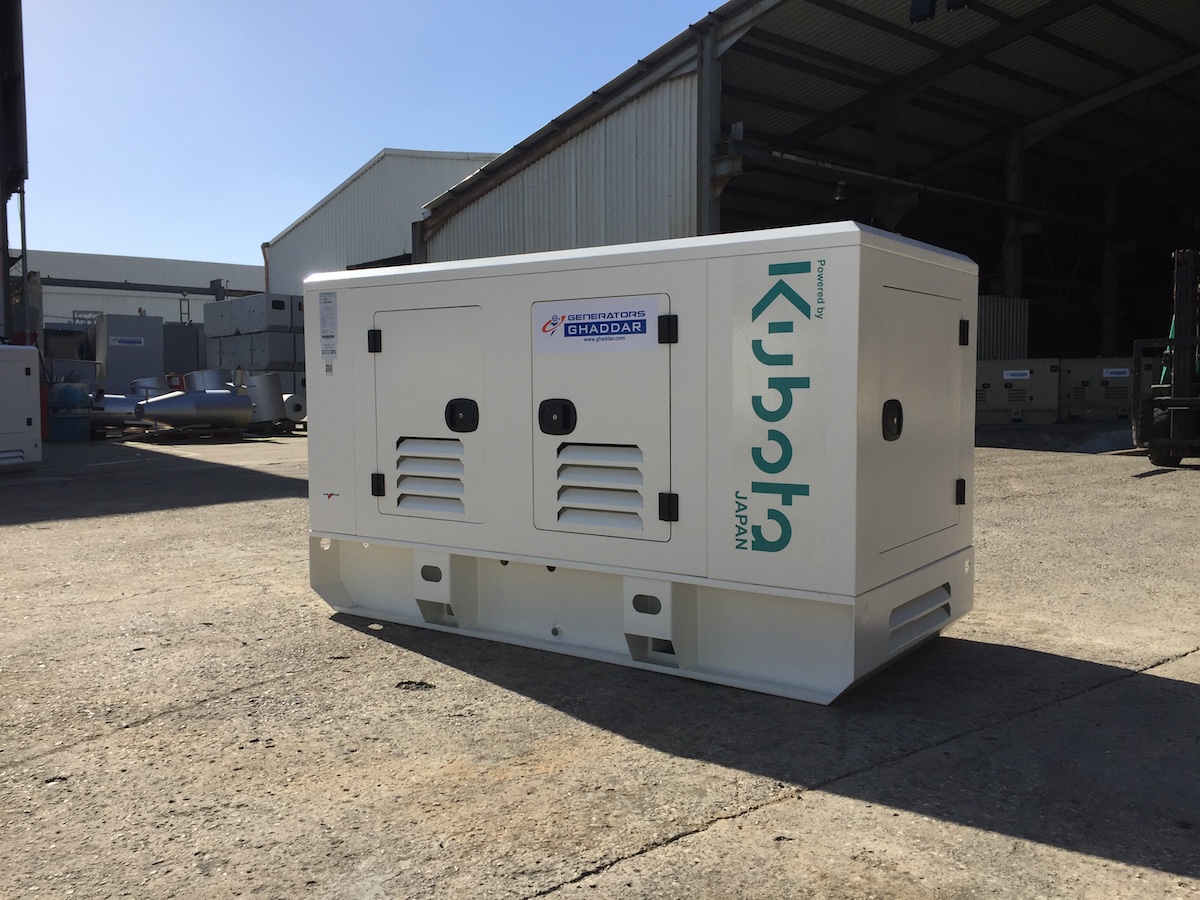

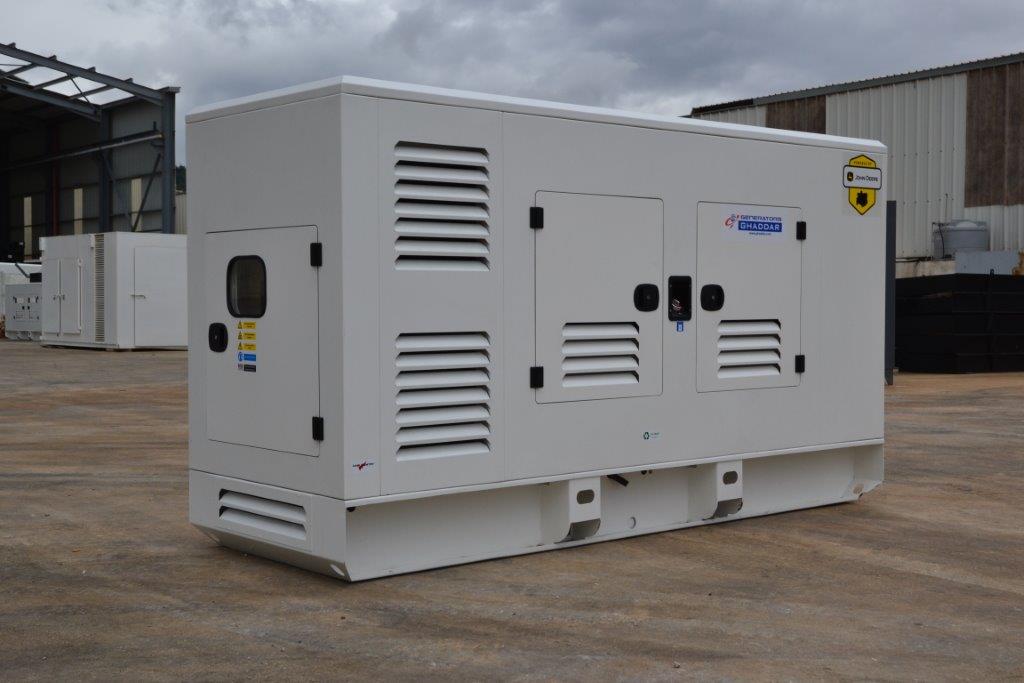

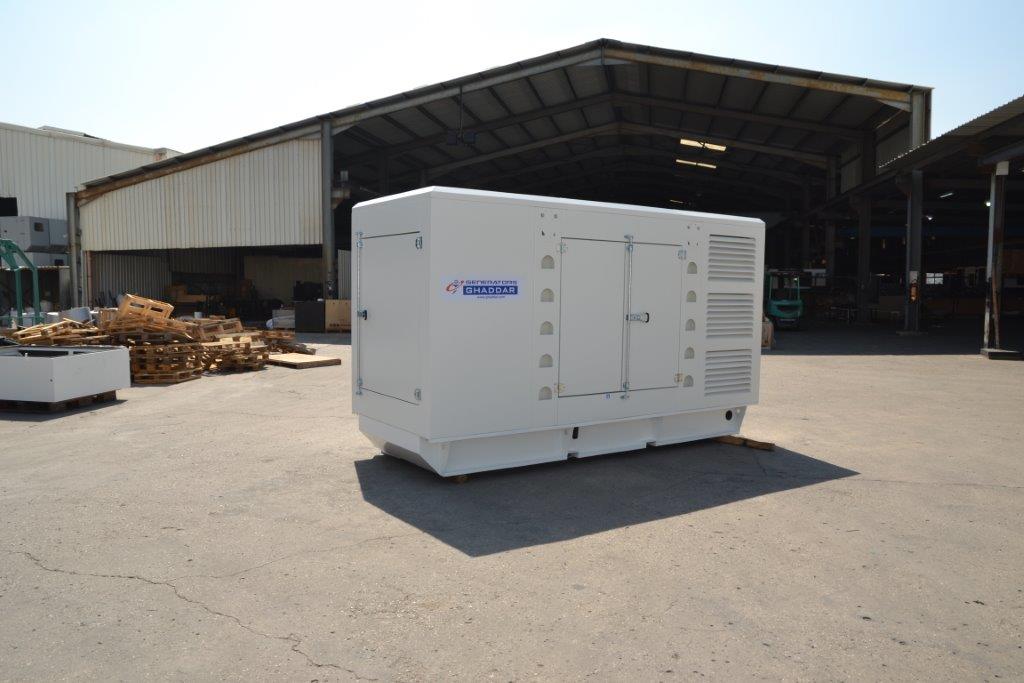

This sectionalized type is specially designed to be installed in tight spaces. With its modern design that is manufactured under the latest norms in fabrication technologies and paints work. This enclosure is considered to be Ghaddar Machinery Co.’s best-selling type. The noise reduction ranges between 75 and 85 dBa.

It is developed in a way that allows its easy dismantling and reassembly.

Canopy Structure

• Body and components made of Galvanized Steel sheets of highest standards with heat-treated highly anti-corrosive powder coating.
• Black zinc die-cast locks and hinges.
• 5 cm Fiberglass Sound Insulation Material with vinyl facing, density 32 kg/m3
• Exhaust silencing system in the interior of the enclosure.

Service & Maintenance

• Six doors to allow easy access for maintenance purposes.
• Special viewing window for the control panel in a lockable door.
• Radiator filling access through a special cover cap on the top of the enclosure.
• Lube Oil pipe can be reached externally for easy drainage.

Security & Safety

• Fuel filling and battery are secured through lockable doors.
• Emergency stop push button mounted on the exterior of the enclosure (Optional).

Loading & Shipping

• Central top lifting point in addition to lifting points on the base frame.
• Compact Size allowing optimal shipment capacity.
